| Item No |
Curing ratio |
Acid Value
mgKOH/g |
Viscosity
（mPa.s/200℃ |
Tg/℃ |
Cure cycle
℃/min |
Characteristics |
TDS |
| HT5430 |
50/50 |
65-75 |
3000-6000 |
52 |
190/15 |
Suitable for matt finish. |
|
| HT5600 |
50/50 |
68-78 |
1000-3000 |
53 |
160/15 |
Low temperature curing resin. |
|
| HT5820A |
50/50 |
62-72 |
2000-5000 |
53 |
180/15 |
Economical resin, good leveling. |
|
| HT5850 |
50/50 |
68-76 |
2000-5000 |
57 |
180/15 |
High gloss, high fullness of paint film, excellent mechanical properties, good resistance to yellowing, and good storage stability. |
|

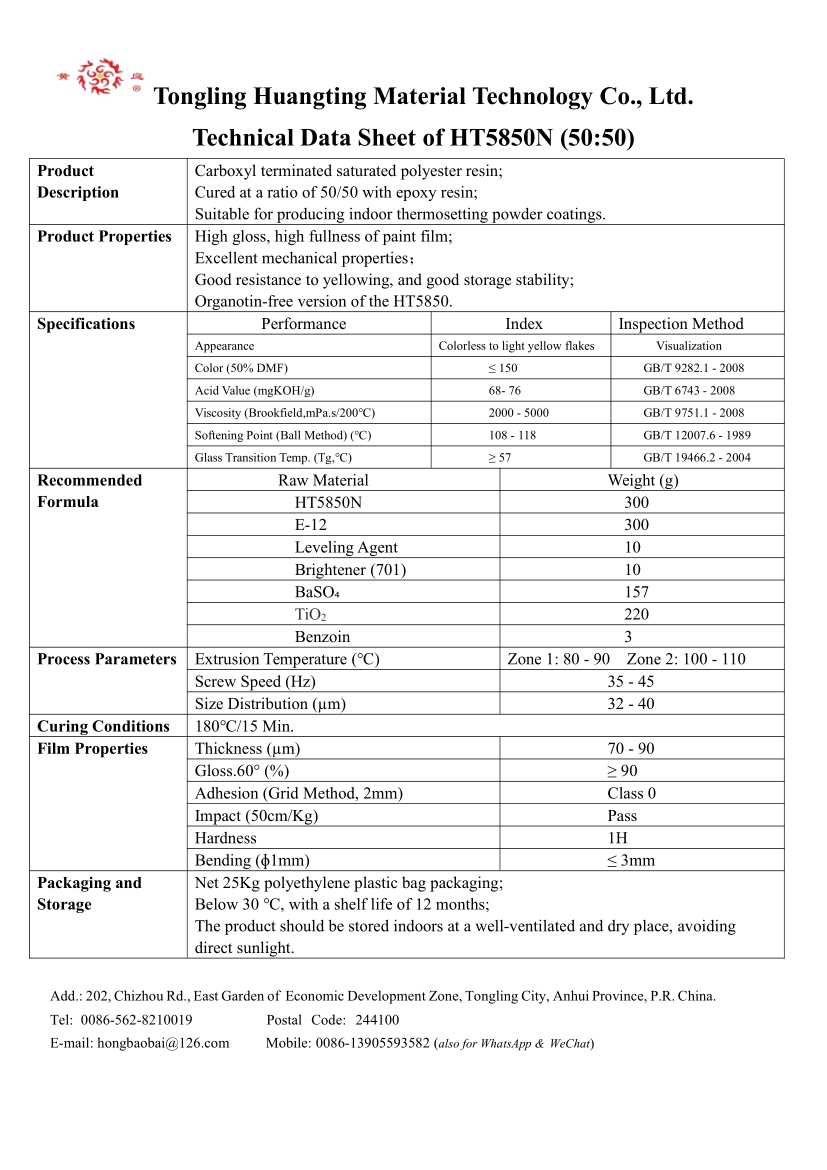

| HT5850N |
50/50 |
68-76 |
2000-5000 |
57 |
180/15 |
High gloss，high fullness of paint film;Excellent mechaical properties;Good resistance to yellowing,and good storage stability;Organotin-free version of the HT5850. |
|
| HT5851 |
50/50 |
56-66 |
1500-4500 |
58 |
180/15 |
Does not contain TMA;Excellent leveling;Good mechanical properties. |
|
| HT5853 |
50/50 |
68-78 |
3000-6000 |
58 |
180/10 |
High gloss,high Tg;Excellent mechanical properties;Good storage stability |
|
| HT5880 |
50/50 |
68-78 |
2500-5500 |
53 |
180/15 |
General application polyester resin. |
|
| HT6400 |
60/40 |
48-55 |
2500-5500 |
54 |
200/15 |
Slow curing type, excellent leveling, suitable for wheel hub powder. |
|

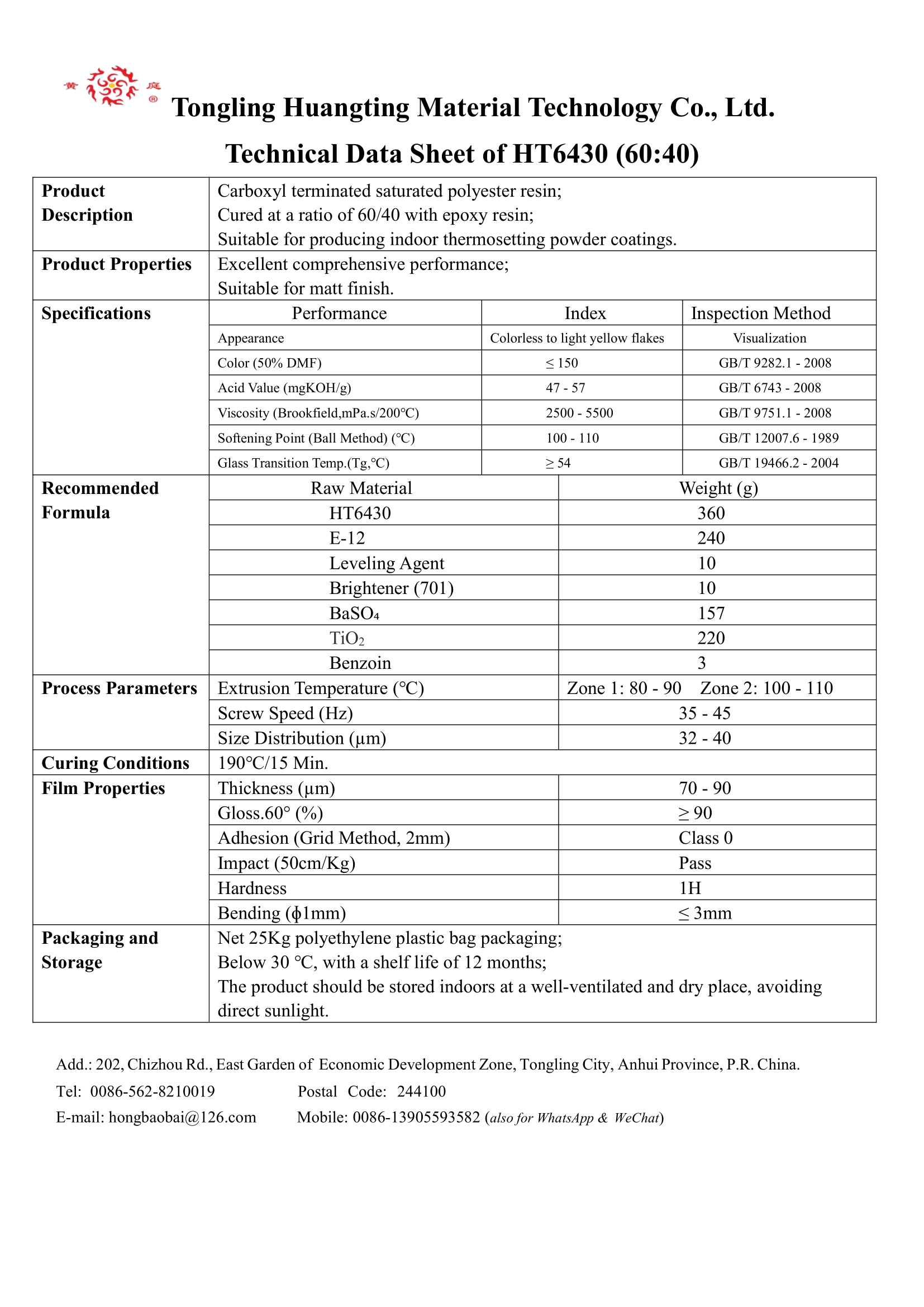

| HT6430 |
60/40 |
47-57 |
2500-5500 |
54 |
190/15 |
Suitable for matt finish. |
|

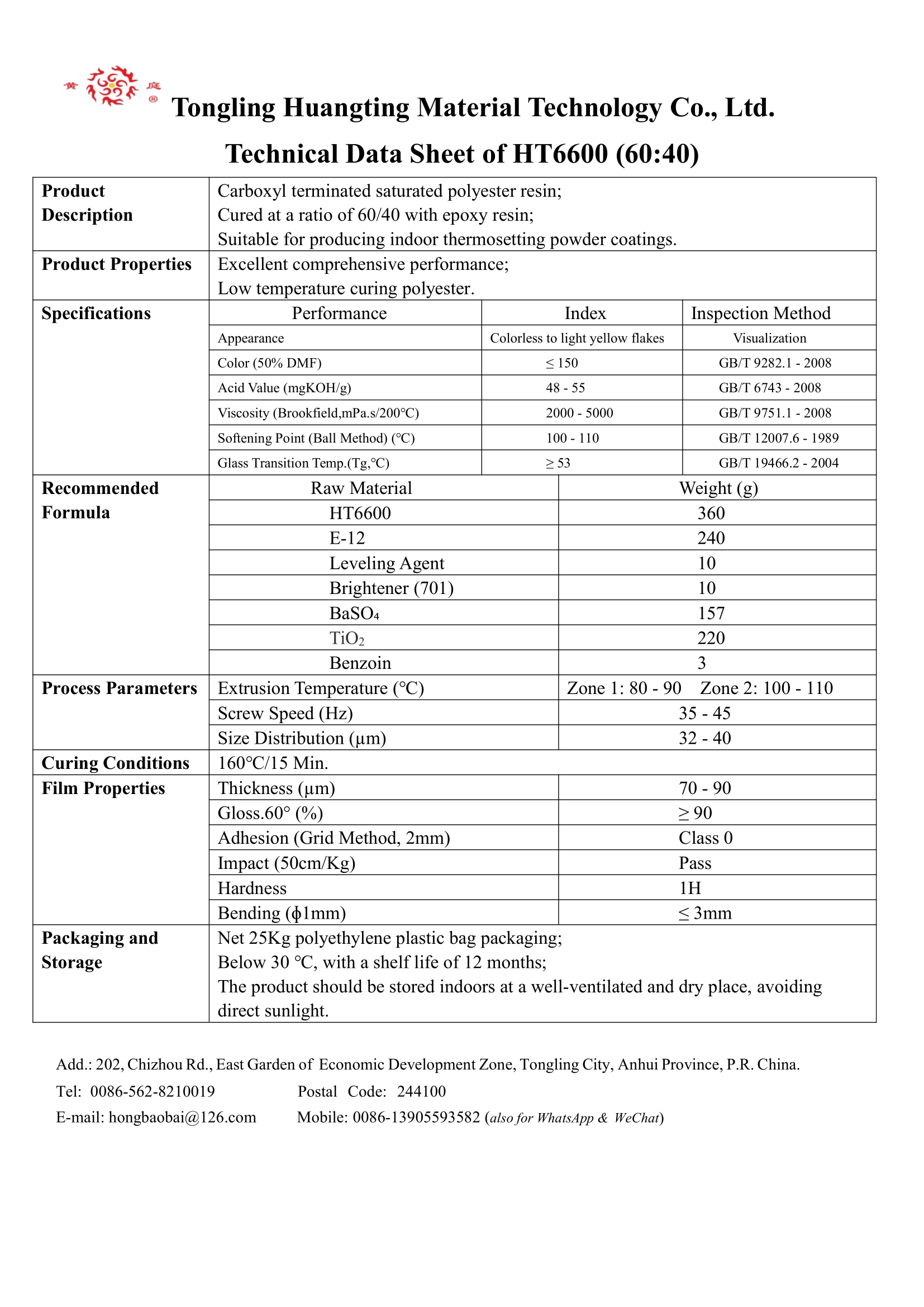

| HT6600 |
60/40 |
48-55 |
2000-5000 |
53 |
160/15 |
Low temperature curing polyester. |
|
| HT6810 |
60/40 |
50-60 |
2000-4500 |
56 |
180/15 |
Good leveling and overall performance. |
|
| HT6820 |
60/40 |
48-56 |
2500-5500 |
55 |
180/15 |
General application polyester resin. |
|

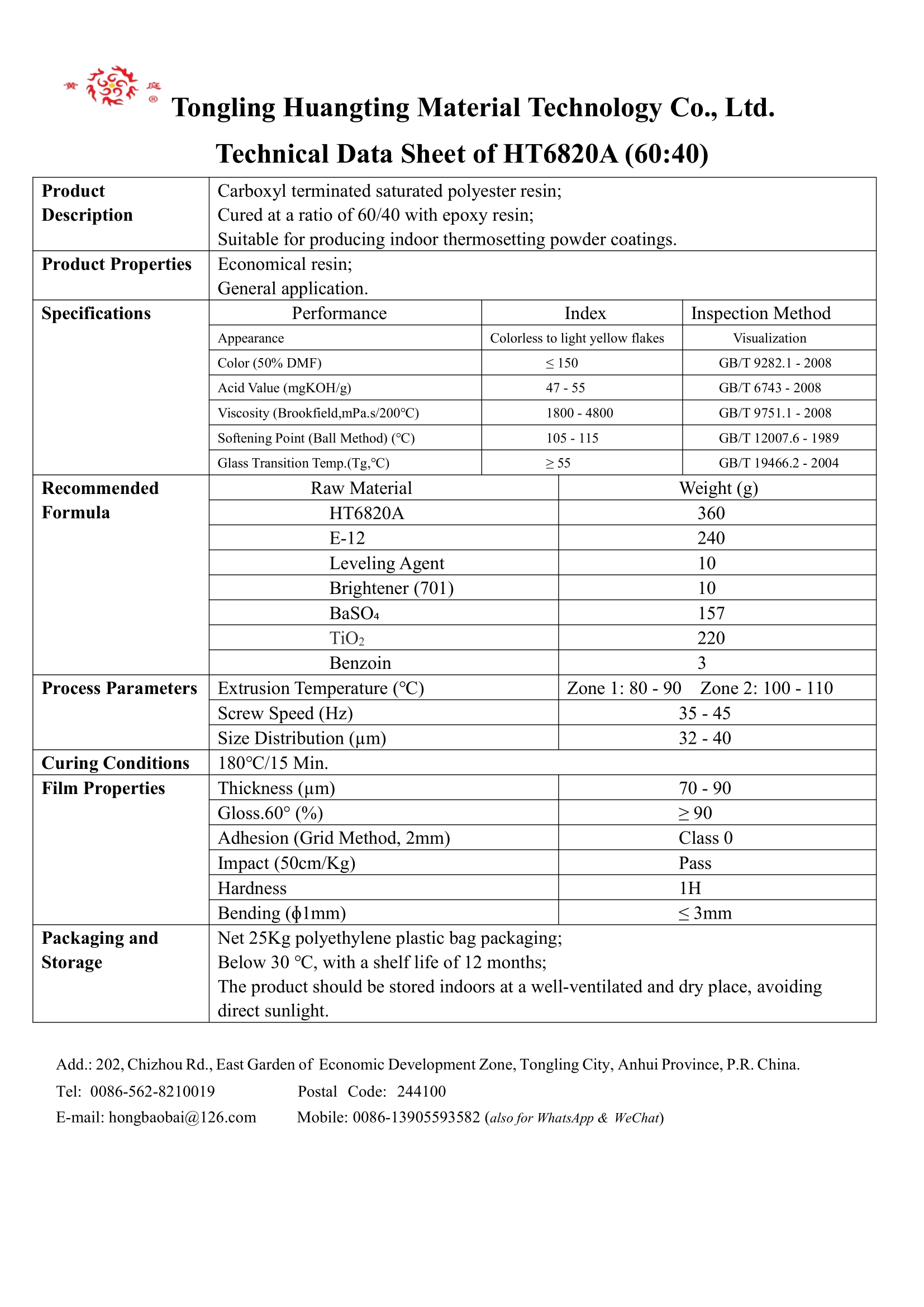

| HT6820A |
60/40 |
47-55 |
1800-4800 |
55 |
180/15 |
Economical, general application. |
|

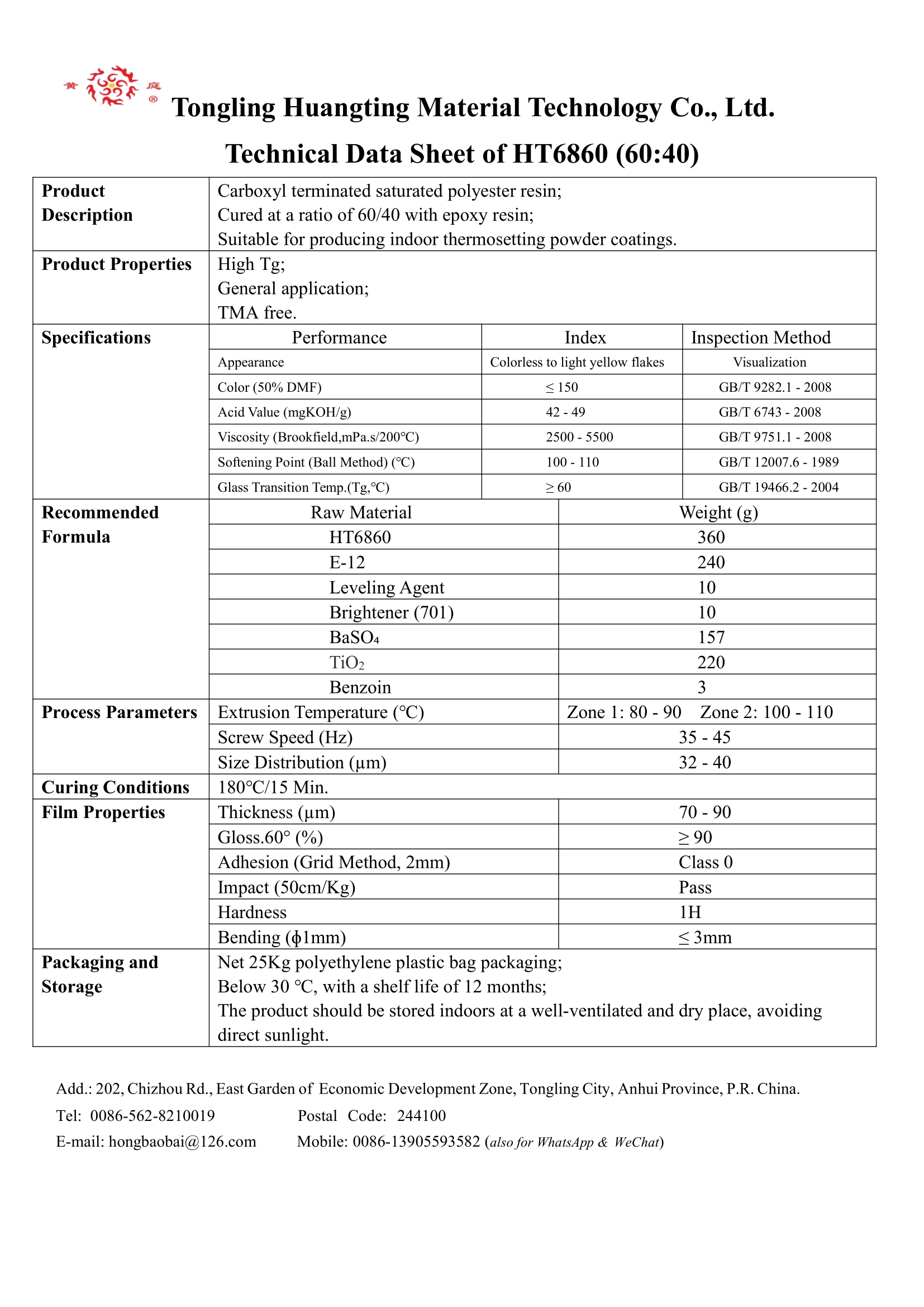

| HT6860 |
60/40 |
42-49 |
2500-5500 |
60 |
180/15 |
High Tg, General application, TMA free . |
|

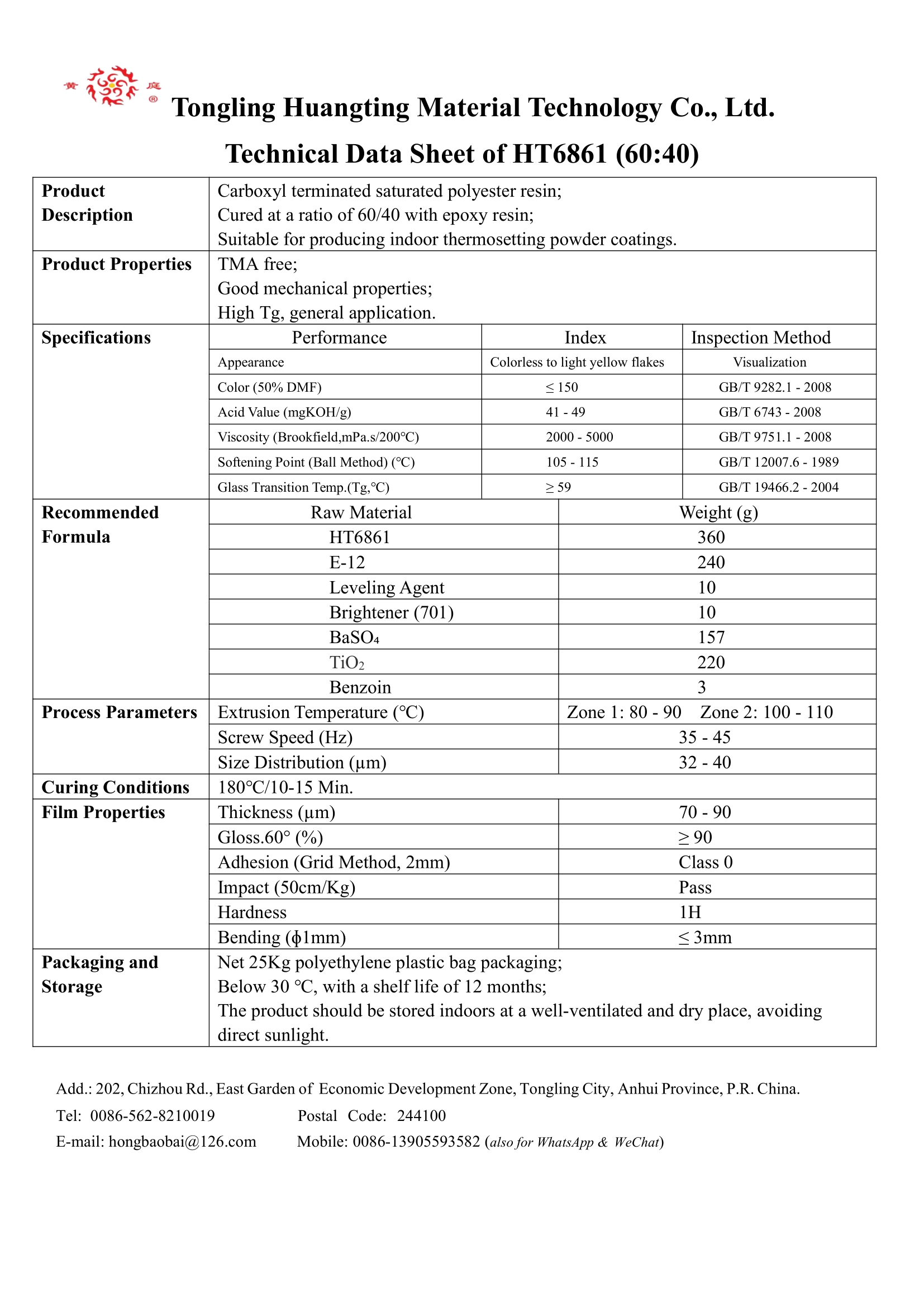

| HT6861 |
60/40 |
41-49 |
2000-5000 |
59 |
180/10-15 |
TMA free, good mechanical properties, high Tg, general application. |
|
| HT6863 |
60/40 |
48-56 |
2000-5000 |
62 |
180/10 |
High Tg, and good storage stability，General application polyester resin. |
|
| HT7401 |
70/30 |
30-36 |
3000-6000 |
57 |
200/10 |
Low reactivity resin with excellent leveling performance. |
|
| HT7600 |
70/30 |
30-36 |
2500-5500 |
55 |
160/15 |
Low temperature curing, balanced overall performance. |
|
| HT7800 |
70/30 |
30-36 |
4000-7000 |
57 |
180/15 |
Good leveling and good fullness of the board surface. |
|
| HT7801 |
70/30 |
30-36 |
3000-6000 |
55 |
180/15 |
Economical polyester for general applications. |
|
| HT7803 |
70/30 |
27-35 |
2500-5500 |
54 |
180/15 |
Excellent mechanical properties, good leveling. |
|

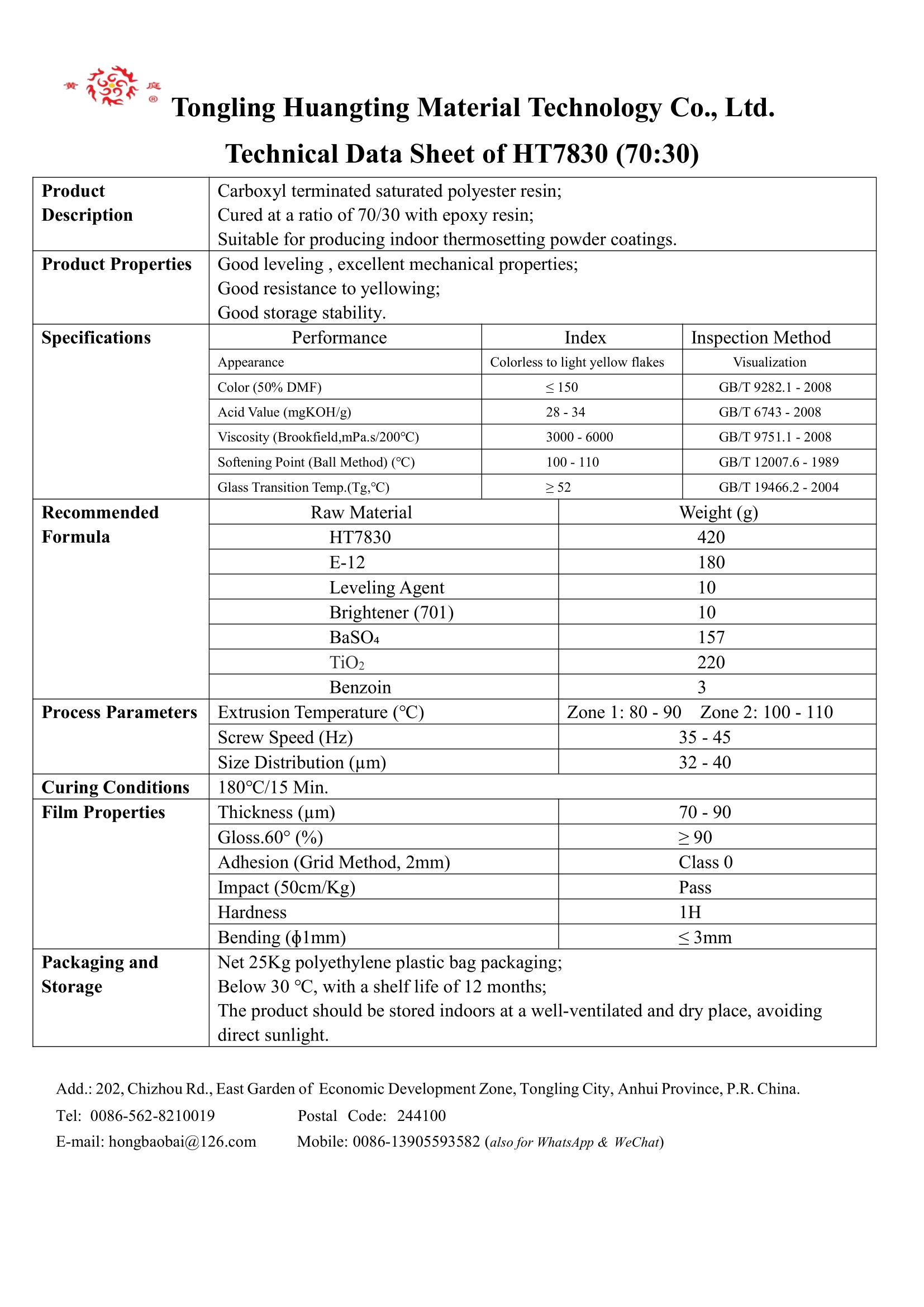

| HT7830 |
70/30 |
28-34 |
3000-6000 |
52 |
180/15 |
Good leveling, excellent mechanical properties, good resistance to yellowing, and good storage stability. |
|

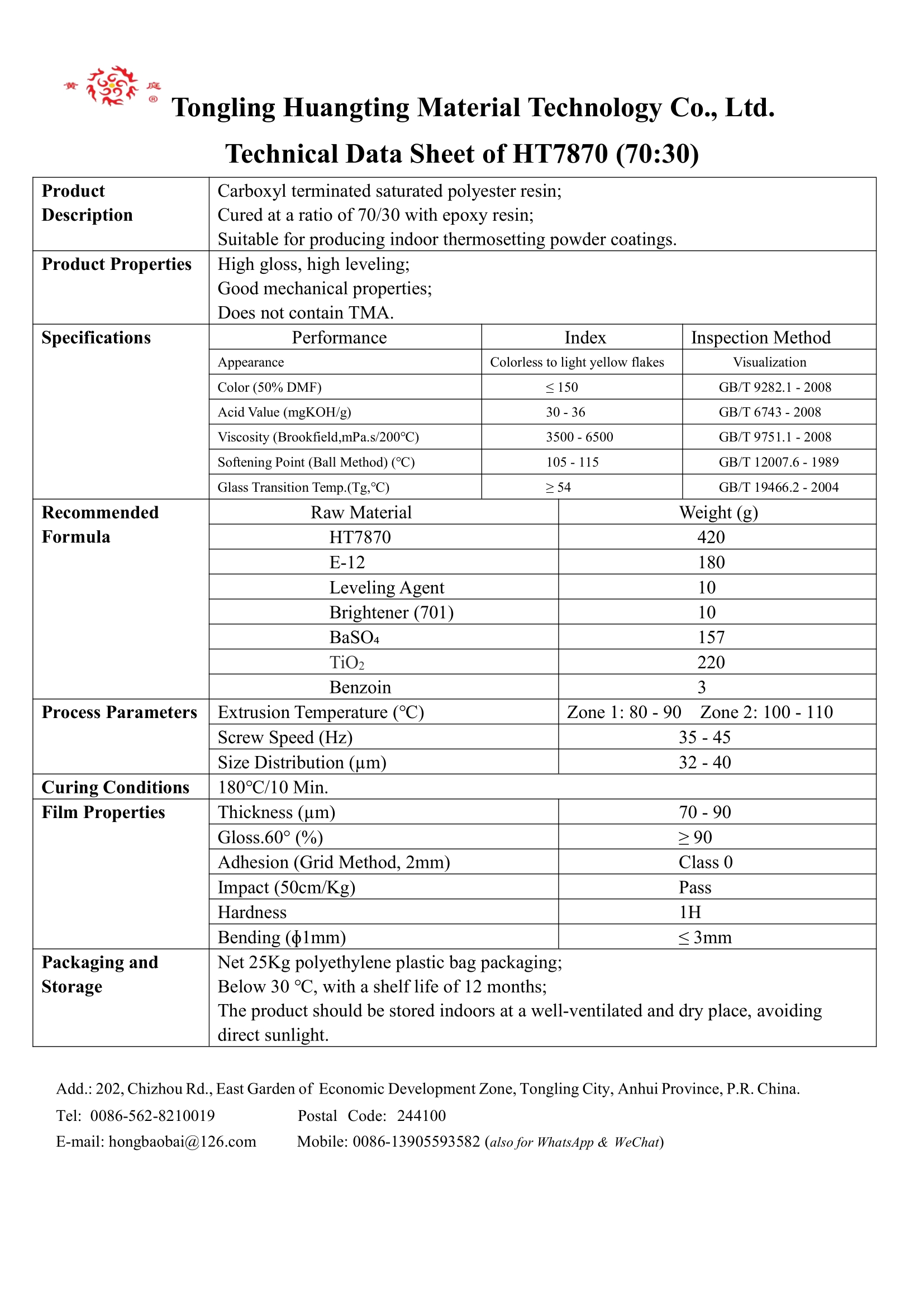

| HT7870 |
70/30 |
30-36 |
3500-6500 |
54 |
180/10 |
High gloss,high leveling;Good mechanical properties;Does not contain TMA. |
|
| HT7873 |
70/30 |
29-36 |
3000-6000 |
60 |
180/10 |
High Tg, high gloss, good mechanical properties, and resistance to yellowing, good storage stability. |
|
